Model 65

Affordable Percent Measurements For Non-Flammable Gases

The MODEL 65 is is a Percent Oxygen Analyzer for non-flammable gases in a general purpose environment. The unit functions as a standalone sensor and utilizes zirconium oxide sensor technology to deliver reliable readings that are not affected by barometric or temperature changes.

Technical Specifications

Physical & Electrical Specifications
WEIGHTInstallationGAS CONNECTION OPTIONS
<1 lbs (0.5 kg)Integrated as a Standalone
Oxygen Sensor

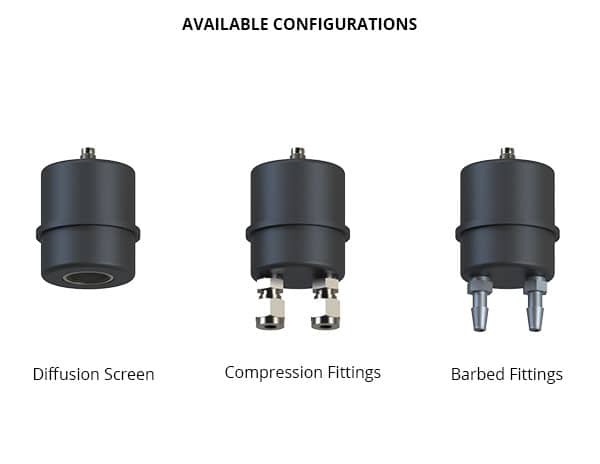

Diffusion screen,
1⁄4” ID tubing for Barbed Fittngs,
or 1⁄4” compression fittngs
POWER
12 – 24 VDC, 500 mA max

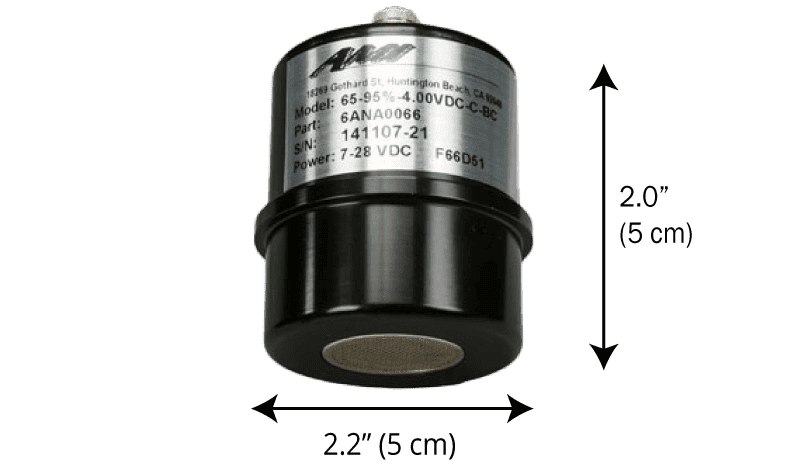

model-65 dimensions
Note: 2-year Warranty for Parts & Labor for any defects in materials or workmanship. 6-month Warranty for oxygen sensors.
Operational Specifications
MEASUREMENT RANGES
(SPECIFIED AT TIME OF PURCHASE)
ANALOG OUTPUT
(SPECIFIED AT TIME OF PURCHASE)
AMBIENT OPERATIONAL TEMPERATURERECOMMENDED FLOW RATE
0 – 25.0%

0 – 50.0%
0 – 2.5 VDC
or
4 – 20 mA
-4°F to 122°F
(-20°C to 50°C)
0.1 to 5.0 SCFH
(0.05 – 2.3 Lpm)
0 – 90.0%0 – 4.0 VDC or 4 – 20 mA
Sensor & Analyzer Performance Specifications
ZIRCONIUM OXIDE SENSORREPEATABILITYOPERATIONAL CONDITIONS
Up to a 10-year life±1% of range or ±0.2 ppm of oxygen,
whichever is greater
Pollution degree 2,
Installation category II
Additional Information
Included Accessories

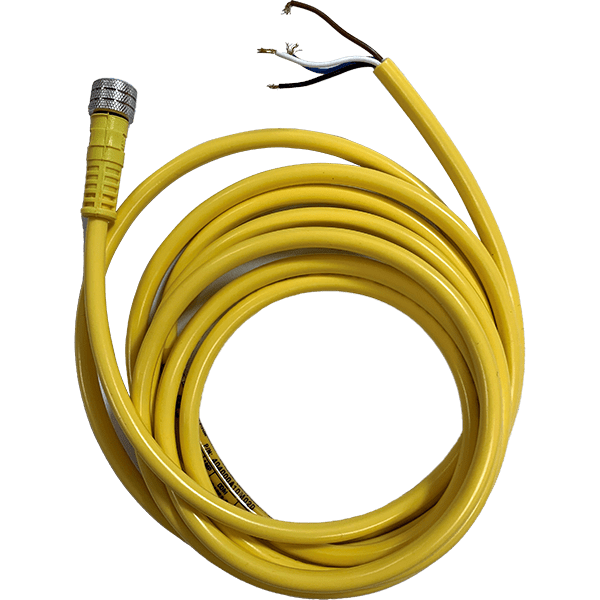

  • 6 Foot Cable
  • 6 foot cable

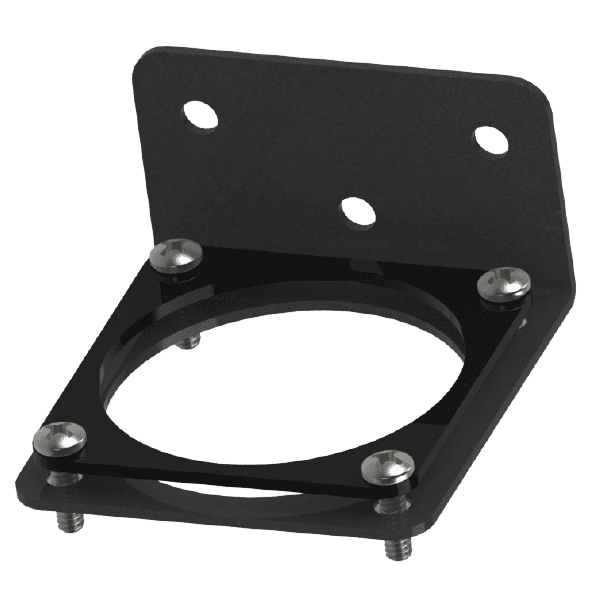

  • Mountng Bracket
  • mounting bracket

Features & Benefits

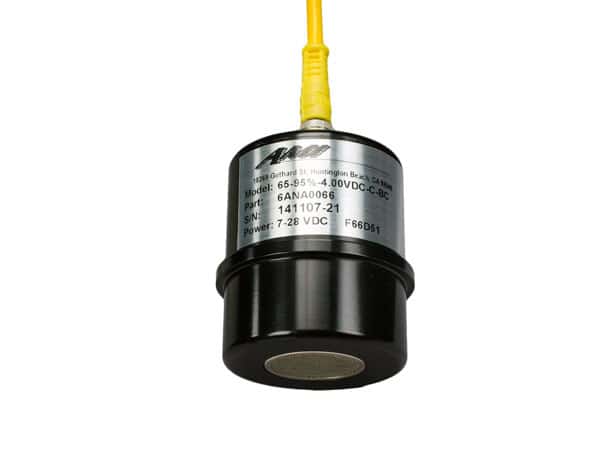

MODEL 65

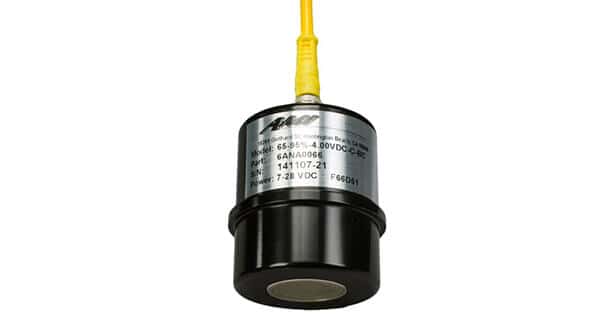

MODEL 65 Percent Oxygen Probe

MODEL 65 Percent Oxygen Probe

The MODEL 65 Percent Oxygen Probe is designed for measuring percent oxygen levels exclusively in NON-FLAMMABLE gases. It will provide a very accurate, stable, long life, linear analog output signal over a preconfigured range of 0-25%, 0-50% or 0-95% of oxygen. The MODEL 65 is simple to mount indoors or outdoors and extremely accurate and stable over a wide temperature range, as well as being immune to changes in barometric pressure.

Zirconium Oxide Sensor
Zirconium Oxide Sensor

Incredible Value

The unit contains a unique zirconium oxide oxygen sensor that gives the probe up to a 10-YEAR LIFE expectancy, making it virtually maintenance-free. It is designed for easy integration into an operator’s system and functions as a standalone oxygen sensor, making it a perfect fit when more costly alarms and controls are not required.

IDEAL OEM SOLUTION

The MODEL 65 is a perfect fit for OEM applications, requiring measurement of percent oxygen levels in inert gases, such as gas blanketing systems, nitrogen or oxygen generators, refrigeration units and many others. At only 2.0” long x 2.2” in diameter (51mm x 56mm), this dependable, rugged, compact probe can be mounted virtually anywhere.
