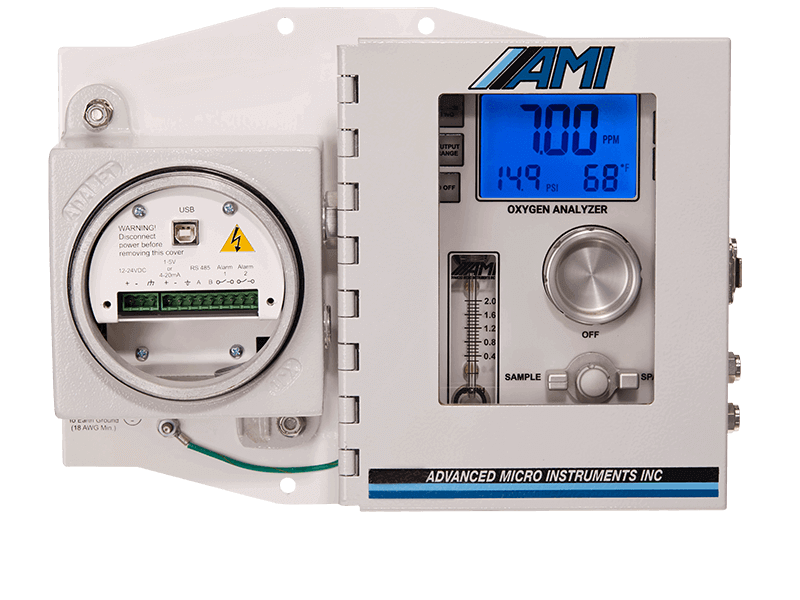

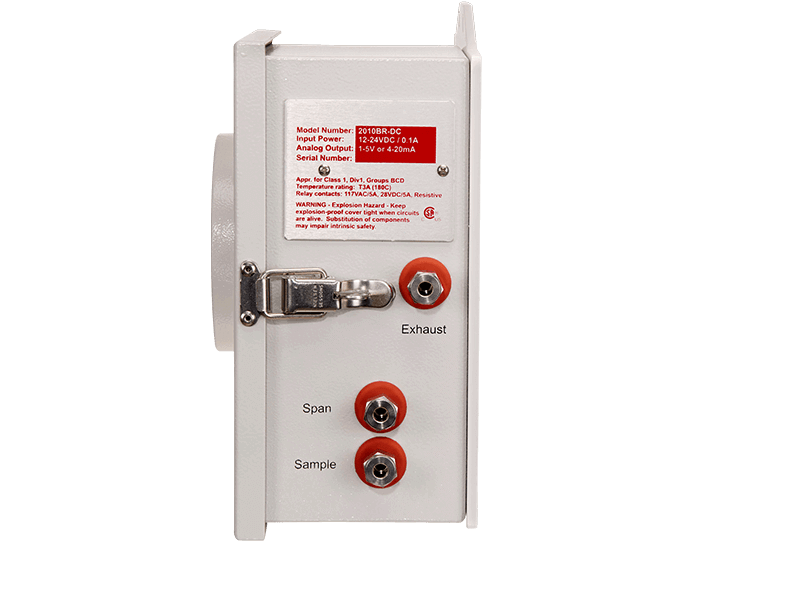

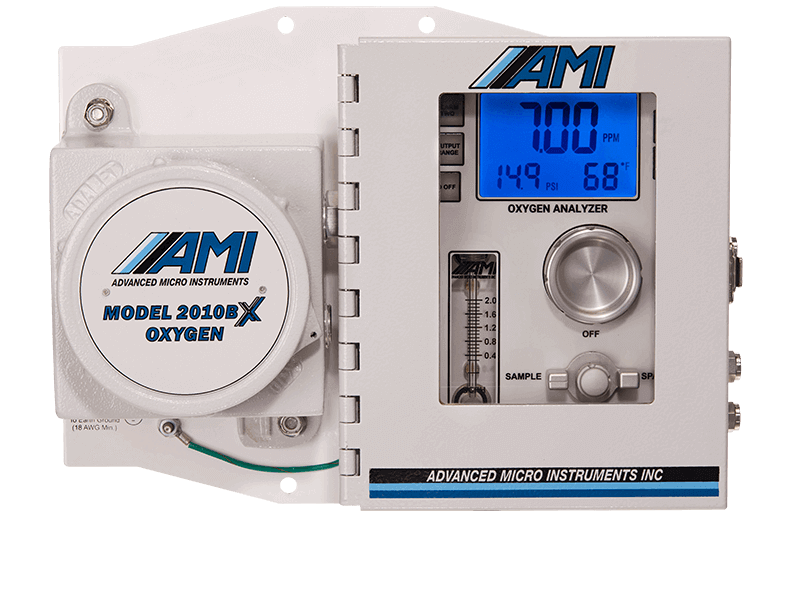

Model 2010BX

Best-In-Class Trace O2 Analyzer

The MODEL 2010BX is AMI’s most advanced Trace Oxygen Analyzer. This next generation unit combines patented technologies and superior design to deliver unsurpassed performance and reliability while keeping costs low. The MODEL 2010BX is the #1 choice among engineers and measurement technicians.

View Tech Specs

Technical Specifications

Physical & Eletrical Specifications
WEIGHTMOUNTINGGAS CONNECTIONSWETTED
PARTS
16.0 lbs
(7.26 kg)
Wall Mount
or 2.0” Pipe
¼” 316 S.S.
compression
fittings
316 S.S. fittings, electro-less nickel-plated cell block, gold-plated contacts, acrylic flow meter & O-rings (Viton, kalrez, and Buna-N)
POWER
DCAC
10 – 24 VDC, 150 mA max (non-heated)
10 – 24 VDC, 2.2 Amps max (heated)
100 – 240 VAC, 150 mA max (non-heated)
100 – 240 VAC, 550 mA max (heated)
model-2010bx dimensions
Note: 2-year Warranty for Parts & Labor for any defects in materials or workmanship. 6-month Warranty for oxygen sensors
Operational Specifications
OUTPUT RANGES
(USER SELECTABLE)
AMBIENT OPERATIONAL
TEMPERATURE
NON-HEATEDHeatedHEATED WITH
EXTREME WEATHER
ENCLOSURE
0 – 10 ppm
0 – 50 ppm
0 – 100 ppm
0 – 500 ppm
0 – 1000 ppm
0 – 5000 ppm
0 – 1.0%
0 – 5.0%
0 – 10.0%
0 – 25.0%
25°F to 115°F
(–3.9°C to 46°C)
–20°F to 115°F
(–29°C to 46°C)
–40°F to 115°F
(–40°C to 46°C)
FLOW RATE
(RECOMMENDED)
INLET GAS
PRESSURE
Operational Altitude
DCAC
0.1 to 2.0 SCFH
(0.05 – 1.0 Lpm)
0.5 − 150 psig
(0.03 − 10.3 bar)
≤ 5,500 m
(18,000 ft)
≤ 2,500 m
(8,200 ft)
Sensor & Analyzer Performance Specifications
T-2 SensorT-4 Sensor90% UPSCALE RESPONSE TIMES
FOR SPECIFIC RANGES
REPEATABILITYACCURACY
Max Range
0 –10,000 ppm

Special Conditions
<10 ppm H2S, Up to 50% CO2
Max Range
0 –10,000 ppm

Special Conditions
<500 ppm H2S, Up to 50% CO2
<25 sec for
0.0 – 10 ppm
<10 sec for
10 ppm – 25.0%
±1% of range or
±0.2 ppm of oxygen,
whichever is greater
±1% of full scale range at constant conditions
APPROVALS
Class I, Division 1, Groups B, C & D, T4
Class I Zone 0/1, AEx ia/db IIB+H2 T4 Ga/Gb
IECEX: Ex ia IIB+H2 T4 Ga/Ex db IIB+H2 T4 Gb
UKCA/PESO: Ex ia/db IIB+H2 T4 Ga/Gb
-32°C ≤ Tamb ≤ +46°C
ATEX: II 1/2 G Ex ia/db IIB+H2T4 Ga/Gb
Ingressed Protection: IP65
Analyzer Key Features
ELIMINATOR CELL BLOCKContains a Complete Sample System with all components, including the flow meter, metering valve, pressure sensor and 3-way Selection (Sample/Span/Off) Valve, fully integrated
ALARMS
2 fully adjustable concentration alarms with configurable Alarm logic and Relay Contacts, featuring:
  • Alarm Bypass
  • Latching/Non-latching
  • Alarm Delays
  • Failsafe/Non-failsafe
  • Trigger Above or Below Setpoint
  • Open or Close on Alarm
INTERNAL PRESSURE SENSORMeasures gas inlet pressure from 0 – 150 psig
ANALOG OUTPUTS1 − 5 VDC and 4 − 20mA isolated output signals and Modbus bi-directional RS485 communication
COMMAND CENTERSoftware that works across AMI’s Analyzers and gives users access to advanced functions:
  • Error Status Display
  • Alarm Configurations
  • Data Logger (records O2  measurements, temperature, psig, and power)
  • Calibration Details
ACCESSORIES
  • Demister
  • Analyzer Guardian

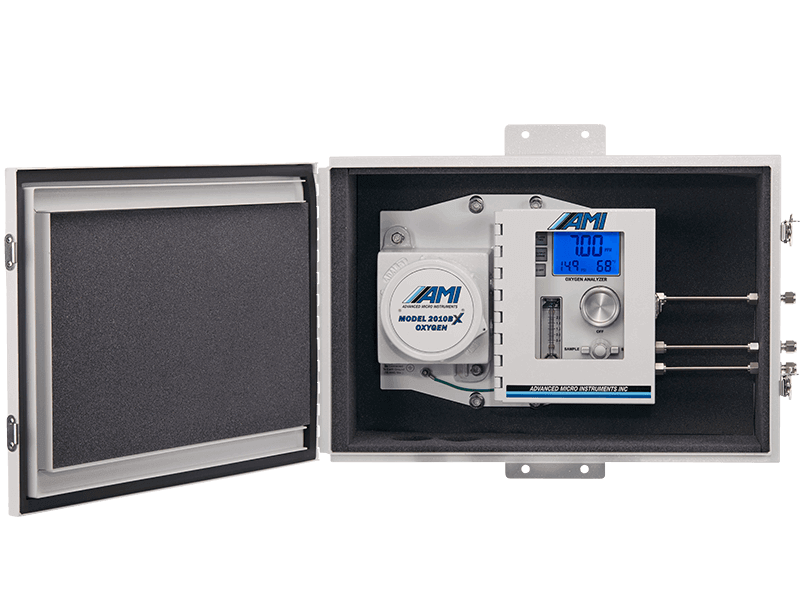

  • Extreme Weather Enclosure
  • Oxygen Sensors

Features & Benefits

Eliminator Cell Block with Component Call-Outs
Transparent View of ELIMINATOR CELL BLOCK

ELIMINATOR CELL BLOCK For A Leak-Free Design

The patented ELIMINATOR CELL BLOCK provides a unique, compact sample system approach and a flow-efficient sensor pocket machined into a solid metallic block. Precision cross drilled intersecting gas passages eliminate the need for long lengths of tubing and leak-prone compression fittings. Additionally, a uniquely engineered 3-way selector valve (Sample/Span/Off), metering valve, pressure sensor and flow meter are all integrated into the ELIMINATOR CELL BLOCK. It also provides the user with direct front panel access for installing and replacing sensors, and the ability to air calibrate the analyzer, all without the need for disassembly or tools.

Image of sensor rendering exploded to show individual elements
Exploded View of Sensor

Proprietary Sensor Technology

AMI’s patented oxygen sensors deliver unmatched performance for ultra-fast response times, accuracy, and reliability. Every sensor undergoes an intense battery of tests to ensure they meet our strict quality control standards. Our trace and percent oxygen sensors operate safely, accurately, and reliably in inert or flammable gas streams, even when containing high levels of H2S - up to 500 ppm, for their entire warranted life. This eliminates the need for a maintenance intensive H2S scrubber that competitive oxygen analyzers require.

Command Center Software running on laptop connected to oxygen analyzer
COMMAND CENTER User Interface

All The Advanced Features For One Low Price

The MODEL 2010BX Trace Oxygen Analyzer comes loaded with a full suite of advanced features without the typical up charges. The standard features include: 10-user selectable analog output ranges, large backlit LCD, dual independent alarm relay contacts, comprehensive alarm logic (fail safe or non-fail safe, latching or non-latching and independent alarm delays), alarm bypass, and 3 levels of security settings. Automatic data logging provides detailed time-stamped records of O2 measurement, gas pressure, temperature, supply voltage and power brown-out history. All these features can be accessed with AMI’s powerful COMMAND CENTER software, which works universally across all AMI analyzers.
