Model 60

Affordable Solution For Percent Oxygen Measurements

The MODEL 60 is a Percent Oxygen Analyzer for flammable and non-flammable gases in a general purpose environment. The unit functions as a standalone sensor and utilizes patented oxygen sensor technologies to deliver fast, reliable readings. As a low cost solution, the MODEL 60 cannot connect to the COMMAND CENTER software or access any AMI advanced features.

Technical Specifications

Physical & Electrical Specifications
WEIGHTInstallationGAS CONNECTIONS
<1 lbs (0.5 kg)Integrated as a Standalone Oxygen Sensor¼” 316 S.S.
compression
fittings
POWER
7 - 28VDC (nominally 24VDC)

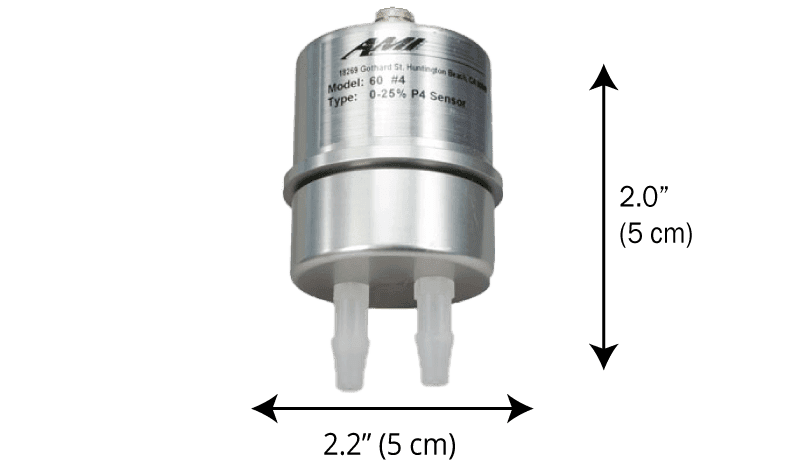

model-60 dimensions
Warranty: 2 years for parts and labor. 6 months for oxygen sensor
Operational Specifications
OUTPUT RANGEAMBIENT OPERATIONAL
TEMPERATURE
FLOW RATE
(RECOMMENDED)
StandardOptional
0 - 25%0 – 1%
0 – 50%
0 – 100%
32°F to 110°F
(0°C to 38°C)
0.1 to 5.0 SCFH
Sensor & Analyzer Performance Specifications
P-2 Sensor (standard)P-3 Sensor (optional)P-4 Sensor (optional)P-5 Sensor (optional)90% UPSCALE RESPONSE TIMEREPEATABILITYAPPROVALS
Max Range
0 – 50%
90% upscale response:
8 sec
Special Conditions:
O2 in inert gas
Max Range
0 – 25%
90% upscale response:
30 sec
Special Conditions:
Up to 100% CO2
Max Range
0 – 100%
90% upscale response:
30 sec
Special Conditions:
Enriched Oxygen
Max Range
0 – 25%
90% upscale response:
30 sec
Special Conditions:
<500 ppm H2S
100% CO2
<10 sec±1% of range or
±0.2 ppm of oxygen,
whichever is greater
Pollution degree 2, Installation category II

Features & Benefits

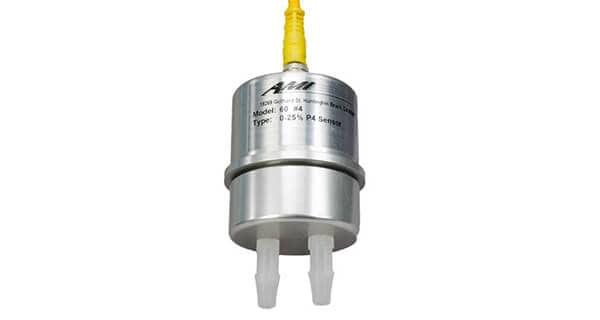

MODEL 60 Percent Oxygen Probe
MODEL 60 Percent Oxygen Probe

MODEL 60 Percent Oxygen Probe

The MODEL 60 Percent Oxygen Probe is a low cost, compact solution for OEM applications or integration into control systems for general industrial processes. The probe uses AMI’s patented electrochemical oxygen sensor making it a fit for measuring O2 in both flammable and Non-Flammable gases. The Model 60 is simple to mount and is suitable for indoor or outdoor installations. It provides a very accurate and linear analog output signal over the standard 0-25% range and has other optional output ranges available.

Percent Oxygen Sensor

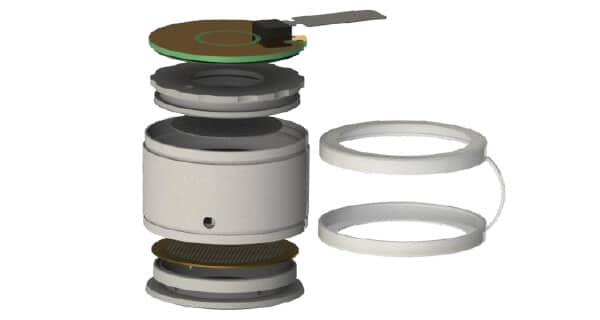

Exploded View of Sensor

Incredible Value

The MODEL 60 is designed to be integrated into an operator’s system and function as a standalone oxygen sensor. It uses AMI’s patented electrochemical sensor that is extremely accurate and linear with a life expectancy of 1-2 years, requiring quarterly calibrations.

Perfect Percent Oxygen OEM Solution

The MODEL 60 is ideal for OEM applications measuring percent oxygen levels in inert, hazardous, and flammable gases. At only 2.0” long x 2.2” in diameter (51mm x 56mm), this dependable, rugged, compact probe can virtually be mounted anywhere.
