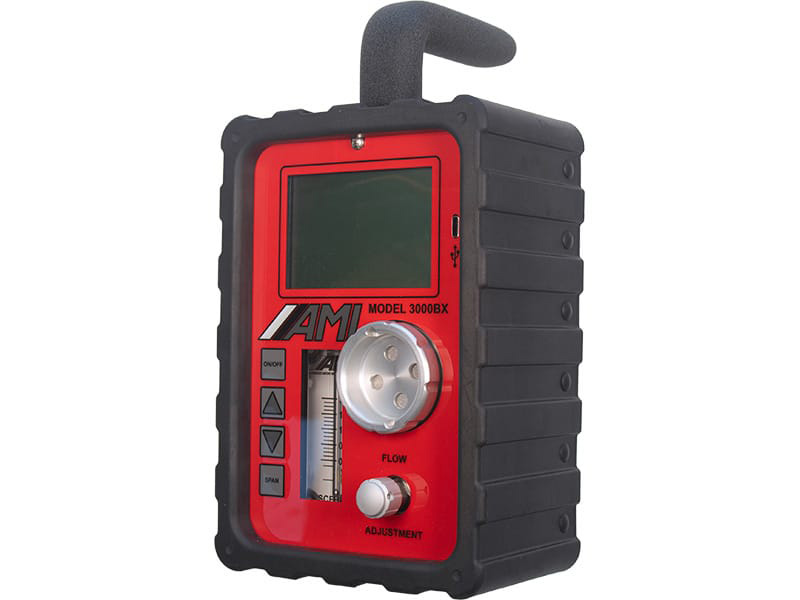

Model 3000BX

Dependable, H2S Measurements FOR WHEREVER THEY ARE NEEDED

The MODEL 3000BX Portable H2S Analyzer is the perfect choice to measure ppm levels of hydrogen sulfide safely and accurately in the natural gas industry. Proprietary innovations and convenient features are designed into a compact, rugged package. The propriety ELIMINATOR CELL BLOCK and high-performance sensor produce a safe, fast, and reliable H2S measurement in a variety of harsh applications. H2S measurements are easy to read on the large, backlit LCD display. The 3000BX is outfitted with a data logging feature that serves as a useful tool to record measurements at multiple sites per day or over an extended period at a temporary installation. The 3000BX is the perfect handheld analyzer for whenever you have a need to measure trace levels of hydrogen sulfide concentrations.

Technical Specifications

Physical & Electrical Specifications
WEIGHTGAS CONNECTIONSWETTED
PARTS
6.0 lbs
(2.7 kg)

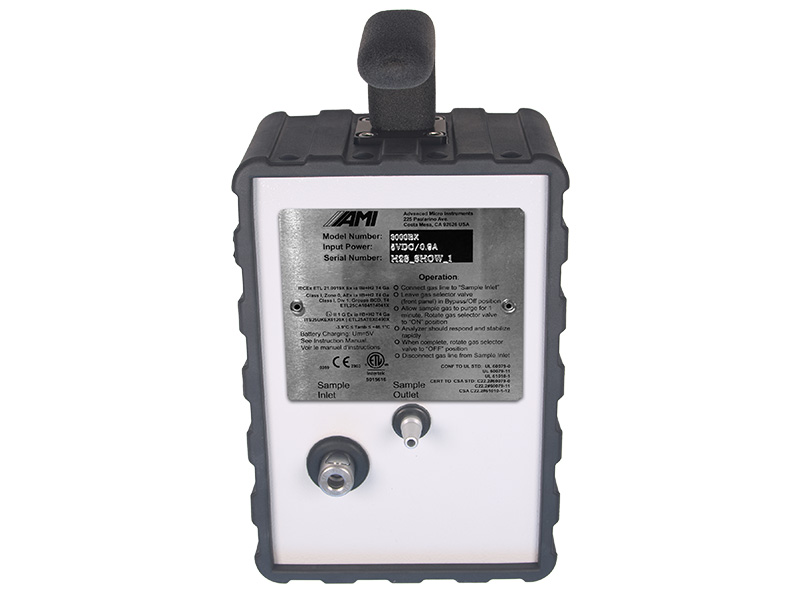

Input: Female quick disconnect fitting. Supplied with mating male quick disconnect fitting coupled to ¼” compression fitting.

Exhaust: Male barb fitting for ¼” flexible tubing.
316 stainless-steel fittings, electroless nickel-plated cell block, gold-plated contacts, acrylic flow meter & Viton o-rings (Kalrez or Buna-N optional)
POWER
Rechargeable nickel cadmium batteries via USB Type C, 25 days of continuous operation on full charge

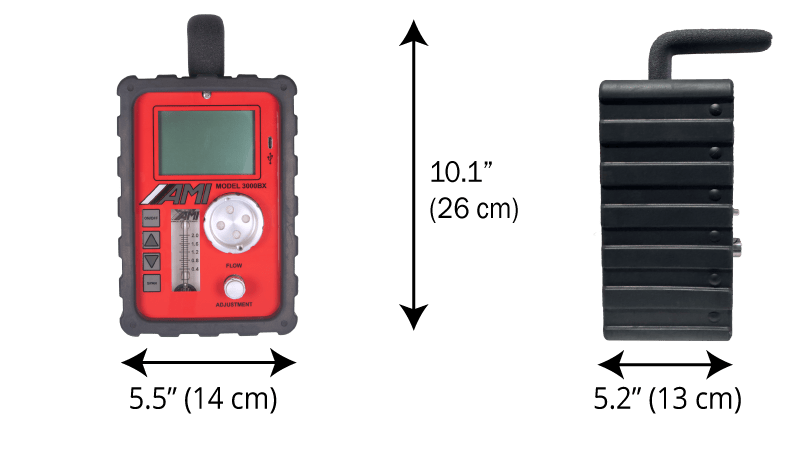

model-3000bx dimensions
Note: 2-year Warranty for Parts & Labor for any defects in materials or workmanship. 1-year Warranty for H2S sensors
Operational Specifications
AMBIENT OPERATIONAL
TEMPERATURE
FLOW RATE
(RECOMMENDED)
INLET GAS
PRESSURE
25°F to 115°F
(–3.9°C to 46°C)
1
(0.5 Lpm)
0.5 − 150 psig
(0.03 − 10.3 bar)
Sensor & Analyzer Performance Specifications
Low Range SensorHigh Range Sensor90% UPSCALE RESPONSE TIMEREPEATABILITYACCURACY
Linear Range
0 to 200 ppm
Resolution
0.1 ppm
Linear Range
0 to 2000 ppm
Resolution
1 ppm
<120 sec±1% of range or
±0.2 ppm of H2S,
whichever is greater
±1% of reading or
±1 ppm of H2S,
whichever is greater
APPROVALS
CSA: Class I, Division 1, Groups B-D, T4
Class I Zone 0, AEx ia IIB+H2 T4 Ga
Ex ia IIB+H2 T4 Ga
-3.9 °C ≤ Tamb ≤ +46.1 °C
IECEx: Ex ia IIB+H2 T4 Ga
-3.9 °C ≤ Tamb ≤ +46.1 °C
ATEX/UKCA: II 1 G Ex ia IIB+H2 T4 Ga
-3.9 °C ≤ Tamb ≤ +46.1 °C
Response To Other Gases In The Sample Gas (Given That 100 ppm Of The Listed Gas Is Present)
Methyl Mercaptan (40 ppm)Carbon monoxide (4 ppm)Hydrogen (1 ppm)Sulfur dioxide (18 ppm)Note: For complete list, contact AMI
Analyzer Key Features
ELIMINATOR CELL BLOCKContains a complete sample system with all components full integrated, including the flow meter, metering valve, pressure sensor, and sensor pocket
INTERNAL PRESSURE SENSORMeasures gas inlet pressure from 0 to 150 psig
COMMAND CENTERSoftware that works across AMI’s analyzers and gives users access to advanced functions:
  • Calibration Details
  • Security Settings
  • Power-up history
  • Data logger recording H2S measurements, date/time, temperature, battery voltage
ACCESSORIES
  • Carrying Case
  • Flexible High Pressure Sample Tubing
  • Replacement H2S sensors
  • Demister
  • Analyzer Guardian

Features & Benefits

Eliminator Cell Block with Component Call-Outs
Transparent View of ELIMINATOR CELL BLOCK

ELIMINATOR CELL BLOCK Advantage

The ELIMINATOR CELL BLOCK’s unique sample system virtually eliminates all potential leak paths while optimizing flow efficiencies. Precision cross-drilled intersecting gas passages and sensor pocket eliminate the need for long lengths of tubing and leak-prone compression fittings. The uniquely engineered metering valve, flow meter, and pressure sensor are integrated directly into this compact block. The sensor pocket is accessed from the front panel for easy sensor replacement without the need of any tools.

The MODEL 3000BX is both accurate and cost-effective
MODEL 3000BX

Accurate & Cost-Effective Measurements

Stain tubes can detect the presence of H2S, but differences in sampling technique and the subjective reading method can lead to unacceptable errors as high as ± 20%. Additionally, the ongoing cost of single-use tubes adds up over months of regular sampling. The one-time investment in a MODEL 3000BX provides an accurate and unambiguous tool to quickly measure ppm levels of H2S and verifying compliance with stringent tariff limits.

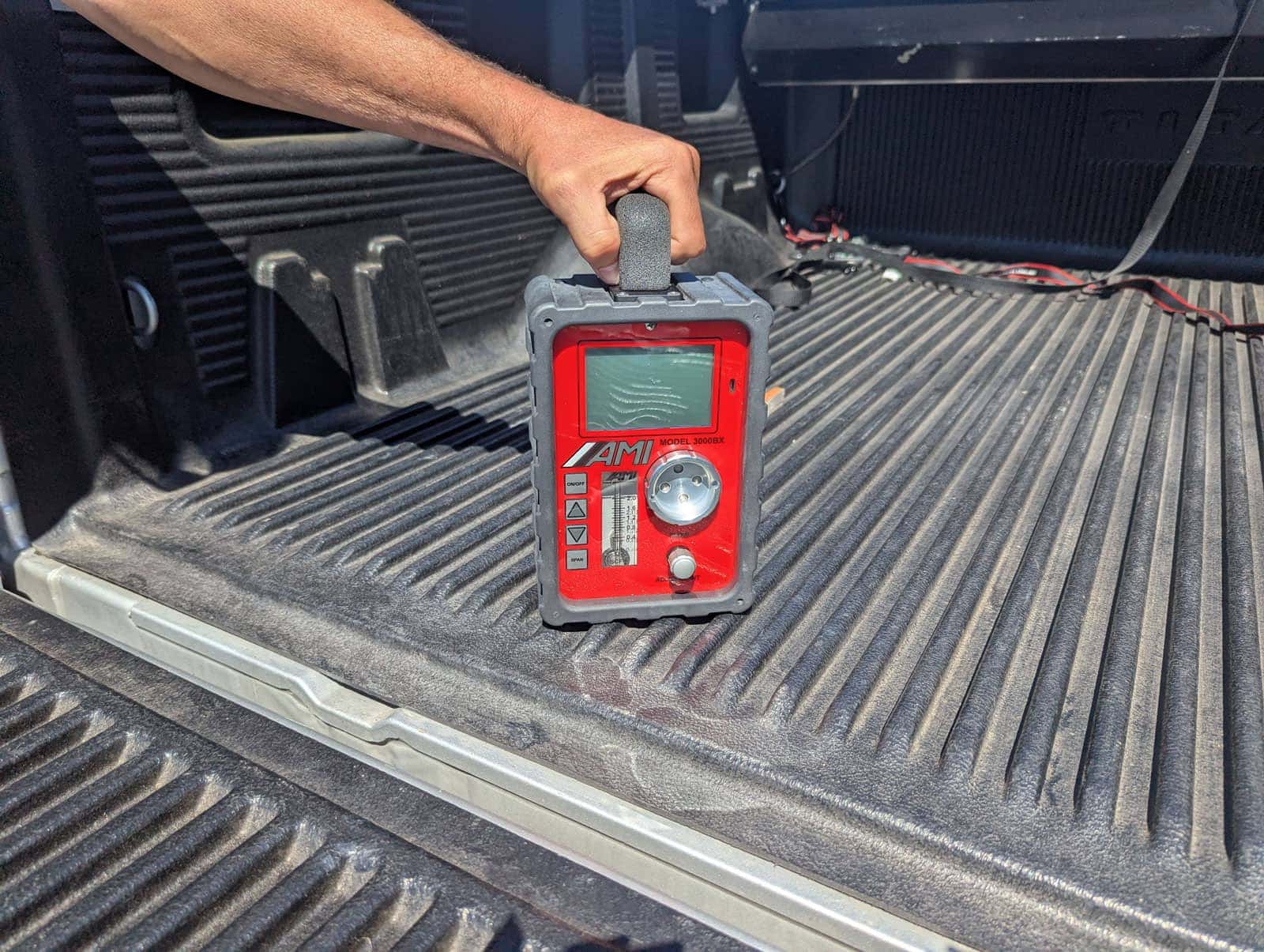

Model 3000BX in the field
MODEL 3000BX

Truly Portable And Designed For The Field

At just 6 pounds (2.7 kg), the MODEL 3000BX is the smallest, lightest, and most accurate Portable Trace H2S Analyzer in the industry. The MODEL 3000BX is a great choice for quick and easy spot-checking of inlet and outlet gas at H2S treatment facilities. When extended monitoring is required, operators can utilize the onboard data logger to record a time-stamped record of H2S levels and temperature at a user-defined interval. The data log is accessed with AMI’s powerful COMMAND CENTER software which works universally across all AMI analyzers. The long-life rechargeable battery makes unattended operation worry-free. The analyzer is designed for tough environments with a steel case with a protective rubberized outer covering.
